Action

Overview

The action property allows you to create a button (or any other clickable element) that performs an action when clicked. This can be used to trigger another block in the workflow, go to another step in a tour, or open a link.

Usage in a workflow

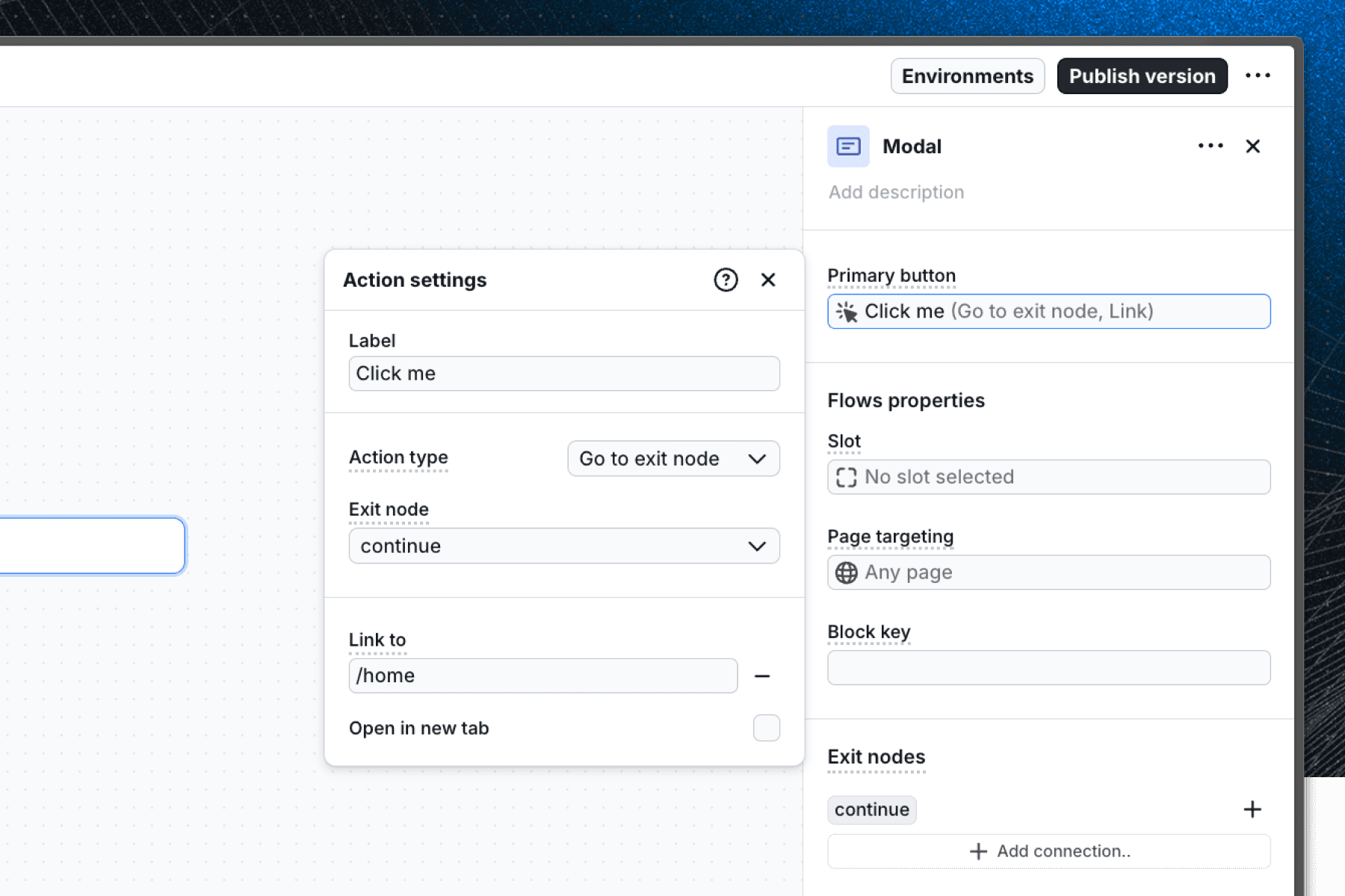

In a workflow, you can configure the action property to perform the desired action. To configure the action, click on the field and fill out the properties.

In a workflow block

• Label: The label of the element used to trigger the action (eg. button text).
• Action type (optional): Select the type of action you want to perform. The available options are:
  • Go to exit node: Trigger one of the block’s exit nodes.
  • Looking for more options? Contact us and let us know what you need.
• Link (optional): By clicking on the Add link button, you can add a link to the action. This link will be opened when the action is triggered. You can also select whether to open the link in a new tab or not.

In a tour block

• Label: The label of the element used to trigger the action (eg. button text).
• Action type (optional): Select the type of action you want to perform. The available options are:
  • Go to next step: Trigger the next step in the tour.
  • Go to previous step: Trigger the previous step in the tour.
  • Cancel tour: Exit the tour using the cancel exit node.
• Link (optional): By clicking on the Add link button, you can add a link to the action. This link will be opened when the action is triggered. You can also select whether to open the link in a new tab or not.

Usage in a block template

In a block template, you can define the action property like any other property. The properties to fill out are:

• Title: The title of the action shown in the block editor.
• Description: The description of the action shown in the block editor (optional).
• Type: Select action from the dropdown.
• Key: The key of the property that will contain the action data in your component.

Below is an example usage of action in a component:

import { type Action, type ComponentProps } from "@flows/react";

type Props = ComponentProps<{
  actionProperty?: Action;
}>;

export const ActionComponent = ({ actionProperty }: Props) => {
  return (
    <div>
      {/* When no actionProperty is passed we don't render the button */}
      {actionProperty ? <ActionButton actionProperty={actionProperty} /> : null}
    </div>
  );
};

// Helper component to handle the action
const ActionButton = ({ actionProperty }: { actionProperty: Action }) => {
  // If the action has a URL, render as a link; otherwise, render as a button
  // You can replace these components with your own
  const Component = actionProperty.url ? "a" : "button";

  return (
    <Component
      href={actionProperty.url}
      target={actionProperty.openInNew ? "_blank" : undefined}
      onClick={actionProperty.callAction}
    >
      {actionProperty.label}
    </Component>
  );
};
